NanoPC-T3 – Octa-core, 2GB DDR3, eMMC paměť, Gbps ethernet, WiFi&BT za 75USD

FriendlyARM zveřejnil nového člena do už tak početné rodiny jednodeskových počítačů nazvané NanoPC.

Spousta výkonu za $75 (bez poštovného).

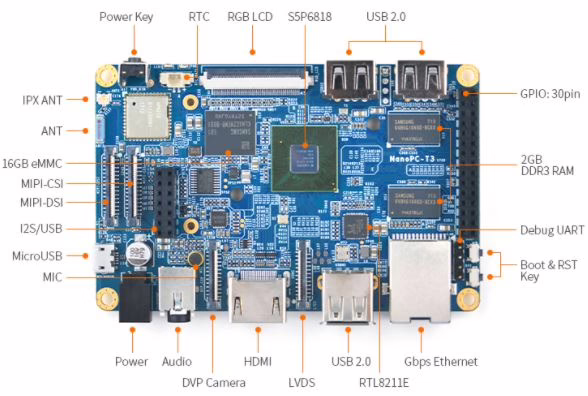

Specifikace:

SoC: Samsung S5P6818 Octa-Core Cortex-A53, 400M Hz – 1.4G Hz

PMU Power Management: Implemented by a Cortex-M0 MCU, support software power-off, sleep and wakeup functions

System Memory: 2GB 32bit DDR3 RAM

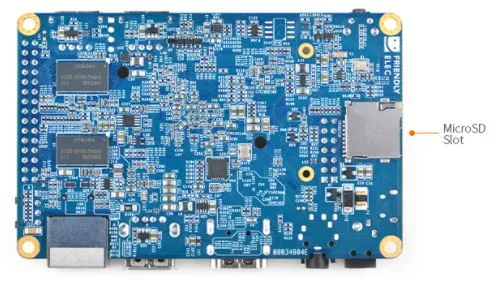

SD Storage: 1 x microSD Card Socket

Ethernet: Gbit Ethernet(RTL8211E)

WiFi: 802.11b/g/n

Bluetooth: 4.0 dual mode

Antenna: Porcelain Antenna IPX Interface
eMMC: 16GB

Video Input: DVP Camera/MIPI-CSI (two camera interfaces)

Video Output: HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (four video output interfaces)

Audio: 3.5 mm audio jack / via HDMI

Microphone: onboard Microphone

USB Host: 4 x USB 2.0 Host, three type A ports and one 2.54 mm pitch pin-headers

MicroUSB: 1 x MicroUSB 2.0 Client, Type A

LCD Interface: 0.5mm pitch 45 pin FPC seat, full color RGB 8-8-8

HDMI: 1.4A Type A, 1080P

DVP Camera: 0.5mm pitch 24 pin FPC seat

GPIO: 2.54 mm pitch 30 pin-header

I2S/USB: 2.54 mm pitch 14 pin-header

Serial Debug Port: 2.54mm pitch 4-pin-header

User Key: power, Reset, boot selection

LED: 1 x power LED and 1 x system LED

Other Resources: CPU’s internal TMU

RTC Battery: RTC Battery Seat

Heat Sink: 1 x Heat Sink with mounting holes

Power: DC 5V/3A

PCB: Six Layer

Dimension: 100 mm x 64 mm

Working Temperature: -40℃ to 80℃

OS/Software: uboot, Android and Debian
