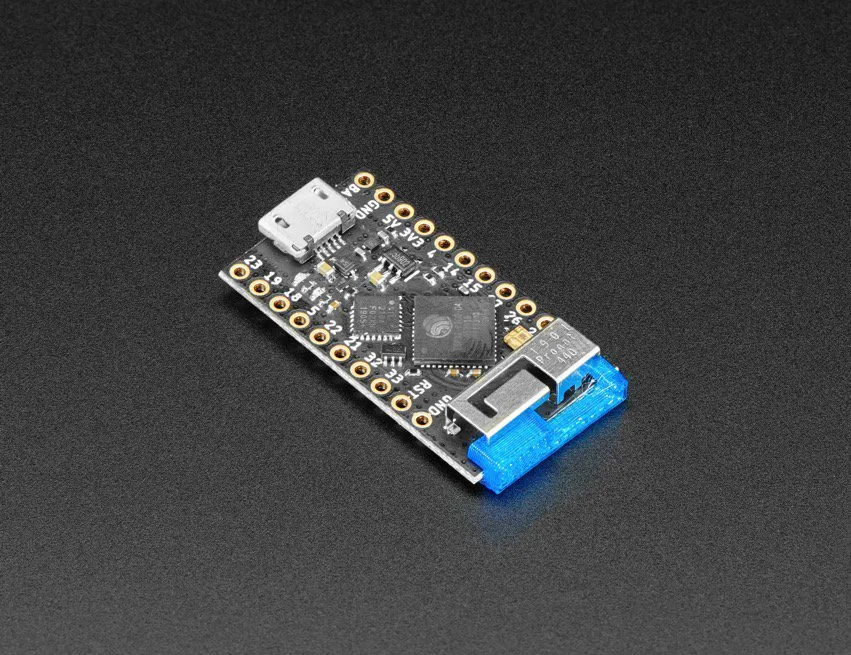

TinyPICO – miniaturní deska s ESP32

Adafruit představilo desku s WiFi a Bluetooth modulem – miniaturní vývojový kit s ESP32, 4 MB RAM, MicroUSB, RGB LED a také nabíjecím obvodem LiPol baterie, kterou zanedlouho začne prodávat na svém e-shopu.

V TinyPICO už je předinstalován MicroPython.

Dneska momentálně není skladem, ale už nyní je známa cena – 20 USD.

Getting Started Guide najdete na https://www.tinypico.com/gettingstarted.

TinyPICO najdete na https://www.adafruit.com/product/4335

Specifikace produktu:

    Processing:


        32-bit dual-core processor operating at 240 MHz


        4 MB SPI flash


        4 MB extra PSRAM


    Wireless:


        2.4 GHz Wi-Fi - 802.11b/g/n


        Bluetooth BLE 4.2


        3D antenna


    Power:


        700 mAh 3.3 V LDO regulator


        Optimized power path for low-power battery usage


        LiPo battery management


        Battery pads on the bottom support both JST PH & MicroBlade connectors (included unassembled with every TinyPICO)


        Power (red) & charge (orange) LEDs


    Form-factor:


        Breadboard-friendly

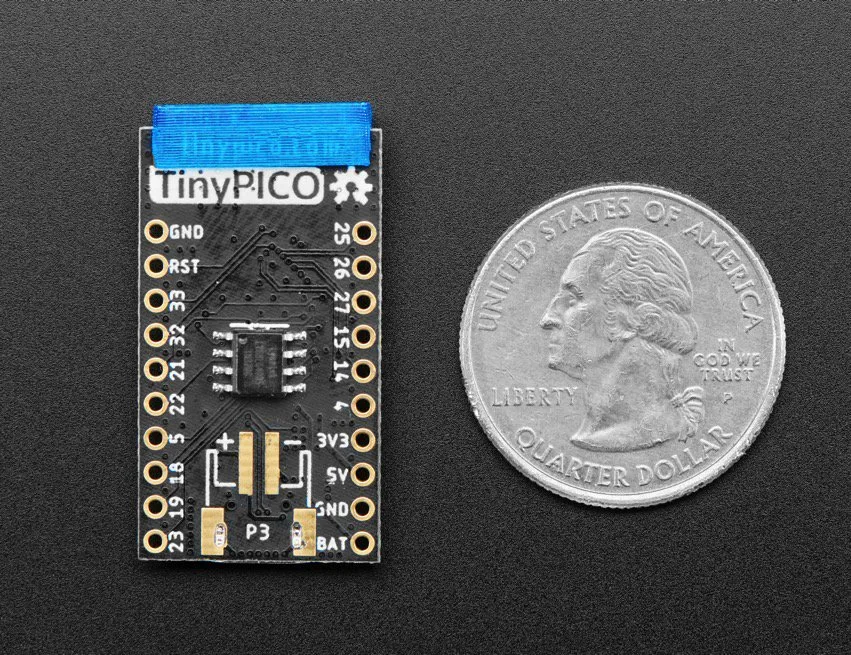

        Oh, it’s tiny! Just 18 mm x 32 mm


    Connectivity:


        14x GPIO broken out to standard pitch headers


        USB + serial/UART for programming


        APA102 RGB LED


    Control:


        MicroPython pre-installed


        Supports Arduino IDE


        Supports Espressif IDF


        Lots of example code and libraries
